How To Build A Retaining Wall In The Backyard

  • How To Build A Retaining Wall In The Backyard , after
  • How To Build A Retaining Wall In The Backyard , before

As well as stopping your uphill becoming the downhill, retaining walls can also be an excellent design addition and problem solver.

Use them to add terraces or levels, make paths and create more planting opportunities if your soil is shallow.

By reducing the slope, they also slow water flow, giving it more chance to soak in and making your garden more self-watering and sustainable.

The range of materials for retaining walls varies from natural stone and purpose-designed masonry blocks to bricks and treated pine sleepers.

DESIGN TIP Add a series of small walls instead of a tall one to create more planting opportunities and avoid the need for an engineer.

What you need

This sloping garden had no proper entry, so two low walls were built to level off the area and form a walkway, and steps were added.

Treated pine sleepers are the easy and economical option to build a non-structural retaining wall.

To make one section of wall that is 3m long x 400mm high, you’ll need two 200 x 50mm x 3m sleepers and at least one 200 x 75mm x 2.4m sleeper.Use 50mm thick sleepers for the wall rails and 75mm sleepers for the posts.

Dig down with care

Before excavating for walls and posts, it’s important that you have a clear picture of what’s underground.

Contact Dial Before You Dig, a free service that provides diagrams for all utilities.

But still always dig with care as, despite having utility reports, we still encountered a pipe, which was most likely a redundant water pipe, through the middle of our area of excavation.

We could have had a pipe survey company come and check it for us, but it was easier, and cheaper as well, to just adjust our levels
and work around it.

Check the height

A non-structural low wall can be easily designed and constructed by the average DIYer.

But if the height exceeds 400mm, it’s close to a boundary, or it will be carrying a heavy load or a ‘live’ load like a driveway, then you may need to seek professional advice on its design.

Install drainage

Lay slotted Reln Stretch-Drain behind a retaining wall and pull it out to the required length. Make sure it falls slightly in the desired direction.

Cap the starting end and connect the output end to unslotted pipe, then run to stormwater or another section of slotted drain shallowly buried in the garden as a watering pipe.

Cover to 50mm deep with blue metal aggregate, add filter or drainage fabric, then backfill behind the wall with soil.

install drainage, handyman magazine,

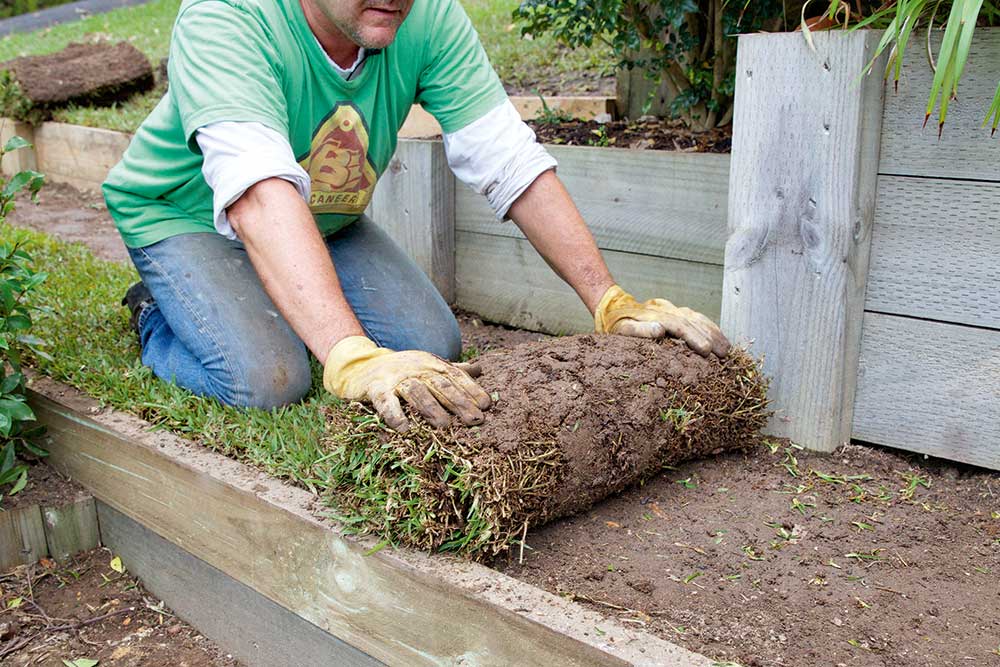

Finish with a layer of turf to prevent soil erosion

drainage, handyman magazine,
Don’t drain towards adjoining properties

Adding steps

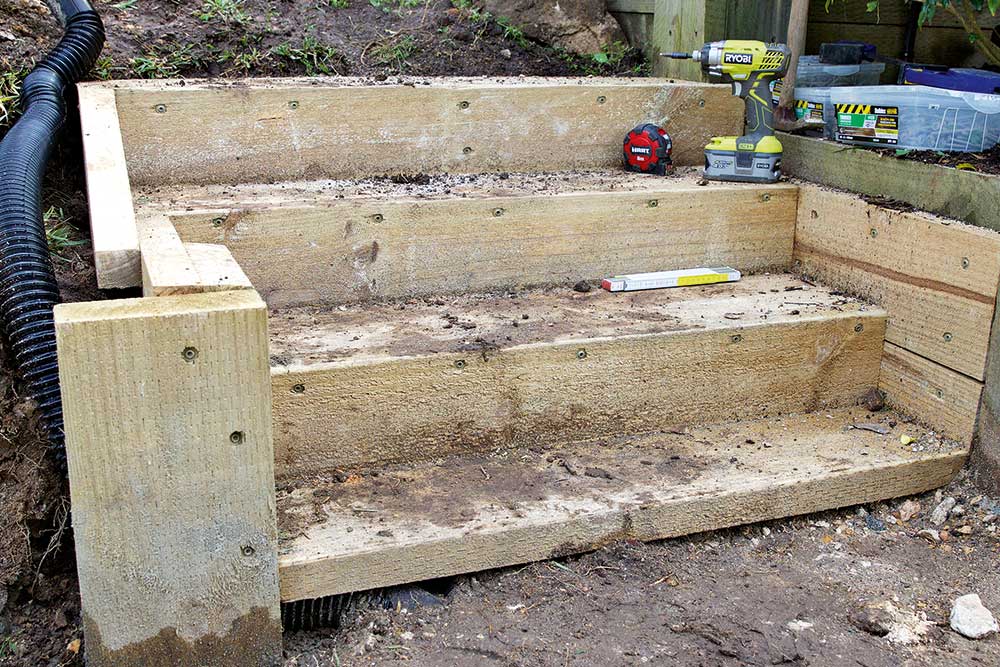

For steps, we built a 1m wide box construction, with 250mm treads and 150mm risers.

Adjust the plan to fit with posts and any existing structures, adding the top step once the main structure is secured in position.

Use timber construction screws if you’re securing to an existing structure. Attach one side to the structure and the other side to the wall post.

steps, handyman magazine,
Don’t make the steps too large or it will be hard to position them

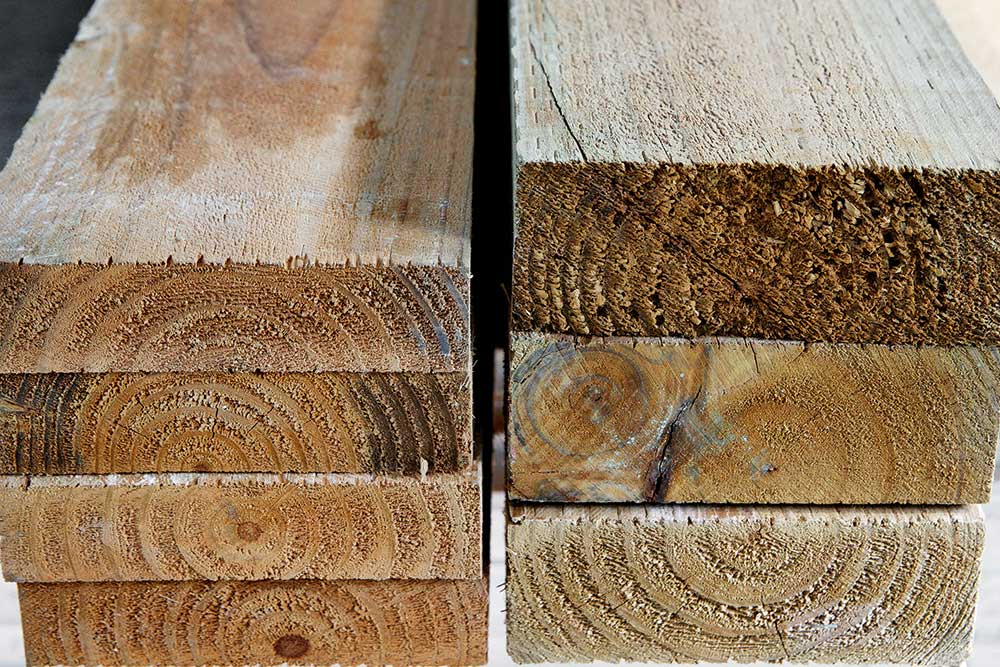

Treated pine basics

Traditionally, pine is preserved with chromated copper arsenate (CCA). As arsenic can leach, this type shouldn’t be used for handrails, decks or vegie patches.

ACQ pine uses mainly copper, and while it won’t leach toxins it’s five times more corrosive, so you must secure with ACQ-safe screws.

Micronised treatments use copper microparticles in sleepers called Microshades. A safe option, these also need ACQ-safe screws.

treated pine,
ACQ pine uses mainly copper, and while it won’t leach toxins it’s five times more corrosive

how to build a retaining wall

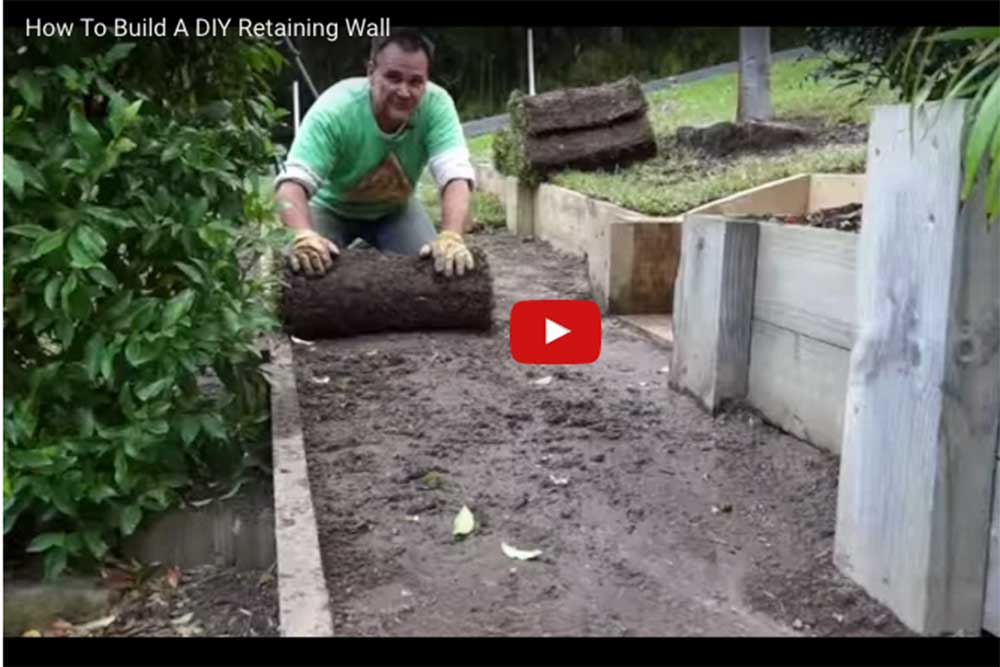

Click here to watch Adam build this retaining wall

Build the retaining wall

Step 1. Mark area

Use set-out paint to mark the area on the ground, then set a stringline to look at levels. This build was to use cut-and-fill techniques in order to also create a level pathway on the downhill slope of the main retaining wall, so a low wall was required on the downhill side as well.

Step 2. Dig site

Excavate the site where both of the retaining walls are to be located, then clear an area at least 500mm wide for each to allow for both the wall and clearance for drainage behind. To break up any rock while digging, use a demolition breaker hammer.

Step 3. Build the steps

Use at least three screws to secure each step at the front and back. Position the steps and check for level from side to side and front to rear. Dig the front post hole to 400mm deep and cut the 200 x 75mm sleeper into three 800mm posts. Position one in the post hole and concrete in place.

Step 4. Install the posts

Reset the stringline to check for level, then mark the position for the remaining posts at 1500mm centres. Dig the post holes, then sink the posts using quick-set concrete. TIP If the wall is one sleeper long, the outside edge of the last post should be flush with the end of the sleeper.

Step 5. Attach sleepers

With the posts secured in position, attach the horizontal wall rails at the back of the posts using timber construction screws. The sleepers can be screwed in from the front or back but, if securing from behind, ensure you don’t drive the screw out through the front face of the sleeper.

Click on the the diagram

Click on the diagram to see each component of the wall and steps.
