How To Build A DIY Carport

  • DIY Carport , after
  • DIY Carport , BEFORE

When you read the real-estate ads, one thing that always grabs attention and gives a property an advantage is covered off-street parking.

Having a carport for your vehicles doesn’t just improve property value, it helps prevent storm damage and keeps cars cleaner for longer, as well as keeping you dry on rainy days.

Building a garage is a bit beyond most people’s DIY skills, so what’s the quick, easy and budget-friendly alternative? The best solution is a classic skillion roof carport in a kit.

For this project, we installed a 5.5 x 5.5m Non-Cyclonic Double Skillion Carport, costing $1650, from Absco

DESIGN TIP If you are in a high wind or high storm-risk area, you may need to buy a carport that has a cyclonic rating.

What you need

To build a carport from a kit, you’ll need basic equipment, power tools and appropriate safety gear.

  • Heavy-duty work gloves, and ear and eye protection
  • Angle grinder with metal cutting blades
  • Sawhorses and stepladder
  • Rivet gun
  • Hammer drill and drill driver
  • Masonry bit for Ramset bolts
  • 10mm metal drill bit and metal rivet bit
  • Phillips bit for Tek screws
  • Silicone roof and gutter sealant
  • Retractable tape measure
  • Long spirit level
  • Spanners and clamps

Plan ahead

Building a structure this size may require approval, so check with your local council before you DIY.

When replacing an existing carport of the same size or larger, approval is generally not needed. But if you’re in doubt, check with the council.

New structures such as carports can be covered by Exempt and Complying Development guidelines, but again, check with the council.

Our kit came with engineering plans ready for submission to the council, so ask your supplier whether yours has these as well.

If your carport is to be installed underneath powerlines, then the power cable may need temporary sheathing with tiger tails. Call the electricity provider for advice.

Consider how you will dispose of runoff water. Either fit it to your stormwater system, or run it through an ag pipe and use it as a soaker hose for garden areas.

Working with kits

If you’ve assembled any large items such as steel shelving or a flatpack kitchen, you’ll find this DIY project quite straightforward.

The difficulty comes from the heavy lifting required to get the roof off the ground, so make sure you have a few pairs of hands at that stage.

Before you start, open the kit and check carefully that all the parts are present to avoid any future problems.

After you finish building, paint the downpipe the same colour as the roof and fascia. Our carport features Colorbond trim and roof sheets in the colour Woodland Grey.

BUILDING TIP The best way to mount your new carport is to bolt it to a slab. Without a slab, use 650mm square x 550mm deep steel-reinforced footings for each column.

SAFETY TIP Ask for help when handling heavy materials and lifting the carport roof off the ground.

Adam's Toolkit

PROTECT yourself when handling roof sheets by always using heavy-duty gloves, and when cutting or drilling metal by wearing safety glasses.

PLUG in the Ryobi One+ 18V charger and radio, $199, to recharge Ryobi One+ batteries and play music while you’re hard at work.

PAINT the downpipe using White Knight Grip-Lock Primer, $18, then finish with Dulux Weathershield, tinted to match the Colorbond roof and fascia colour.

heavy duty gloves, handyman magazine,
Protect yourself when handling roof sheets by always using heavy-duty gloves

ryobi charger and radio, handyman magazine,
 Recharge Ryobi One+ batteries and play music while you’re hard at work

paint the downpipe, handyman magazine,
Paint the downpipe using White Knight Grip-Lock Primer


Install the carport

Step 1. Secure plates

Mark the positions for the mounting plates on the slab. To accurately check the diagonals, measure the distance from the front right mounting point to the rear left, then from the front left to the rear right. The distances should be equal. Use a hammer drill to make the bolt holes, then secure the plates.

Step 2. Join the beams

Assemble and lay out the beams on a level surface to prevent bows at the joints. Join the centre cross beams to the edge beams with bolts through the splice plates, then join the edge beams to make the box frame. Run a bead of silicone around the joints of the edge beams to seal the box gutter.

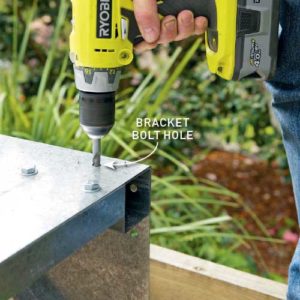

Step 3. Prepare columns

Mark the position for the column brackets on the edge beams and drill bolt holes using a 10mm bit, ensuring the angles are correctly set for roof fall. Mark and drill the column pivot hole, then drill and position the brackets on the column, attaching to the first and last cross beams.

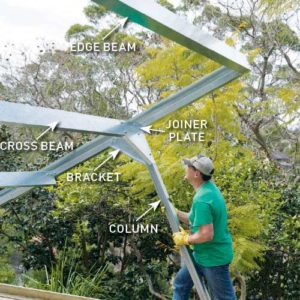

Step 4. Raise the frame

Use joiner plates to attach the first and last cross beams to the box frame. Bolt the front columns through the pivot hole and finger tighten. Raise the frame until the top brackets align with the holes, inserting bolts, then repeat for the rear columns. Tighten all bolts and add the angle roof braces.

Step 5. Install the roof

Drill a hole in the box gutter for a drainpipe at the point of greatest fall, then attach. Secure the first roof sheet at the drain end corner. Position the sheets against the side edge beam with a gap at the fall point for runoff. Attach the sheets with self-tapping screws, joining the overlaps with rivets.

Step 6. Add the downpipe

Use self-tapping screws to attach zigzag brackets at appropriate spacings, then pre-drill to attach fascia boards to the brackets with pop rivets. Cut the downpipe to size so it can be held with the supplied straps against the closest column, then attach. If painting the pipe, use primer and two coats of paint.

Click on the diagram

Click on the diagram to see each component of this carport. Measurements in mm.
